Match the system to the lift.
Core control features and reference configurations. Confirm the ordered equipment revision, rigging arrangement and current load table with ERNE.
Control and operating features.
| Feature | Specification |
|---|---|
| Positional hold | ±1° heading accuracy with GPS fix |
| Memory | Two stored orientation settings |
| Controllers | Dual controllers included with every new order |
| Remote range | 600 ft / approximately 183 m, line of sight |
| Thrusters | Four independent thrusters, up to 14,000 RPM |
| Thruster response | Published spin-up in under one second |
| Rotation control speed | Up to 5° per second (manual reference) |
| Operating endurance | 10–12 hours, depending on usage and conditions |
| Typical charging | 4–6 hours, current ERNE supply specification |
| Full-function temperature | −10°C to 40°C (supplied VLN 2.0 manual) |
Battery timings: ERNE’s current supply specification. Older manuals and flyers quote different charging times. Thruster response: WOLFF Onsite’s published VLN specification.
40T series reference
Beam span and overall length are different.
Equipment mass forms part of the crane-capacity assessment alongside the load and rigging.
Discuss a configuration

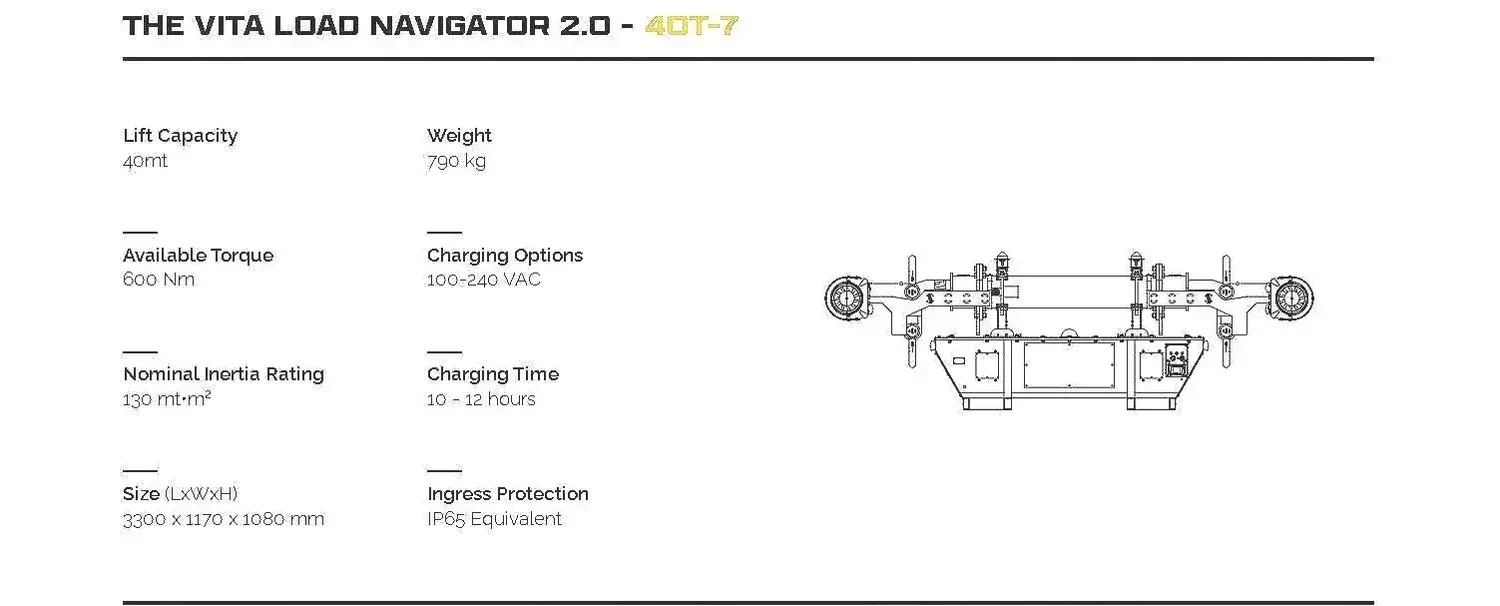

| Configuration | Beam spread | Overall length | Equipment mass |
|---|---|---|---|
| 40T-7 | 7 ft | 3.30 m | 800 kg |
| 40T-11 | 11 ft | 4.50 m | 950 kg |
| 40T-15 | 15 ft | 5.77 m | 1,050 kg |
| 40T-19 | 19 ft | 6.90 m | 1,150 kg |
| 40T-20 | 20 ft | 7.29 m | 1,200 kg |
Reference: supplied VLN 2.0 manual, p16. Other product revisions differ. Use the current data sheet for final equipment selection.
Capacity follows the rigging arrangement.
| Beam span | 45° upper angle | 60° upper angle | 70° upper angle |
|---|---|---|---|
| 7 ft | 29 t | 40 t | 40 t |
| 11 ft | 25 t | 40 t | 40 t |
| 15 ft | 21 t | 40 t | 40 t |
| 19 ft | 17 t | 40 t | 40 t |
| 20 ft | 16 t | 40 t | 40 t |
Example 40T CA arrangement from supplied Caldwell/Vita 072925 load tables, maximum outward lower sling angle 20°. Use the complete applicable load table for the actual lift.
Need current technical documents?
Tell us the system and proposed application. ERNE can help identify the relevant specifications and project documentation.
